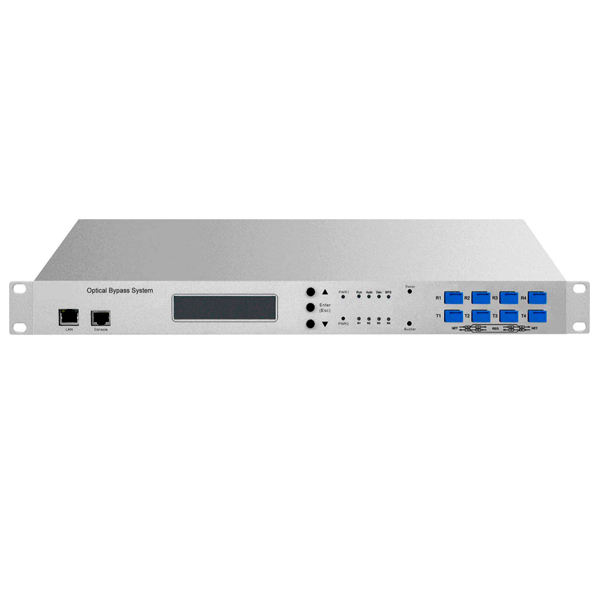

Description
Optical Bypass Protection System (OBP) is a kind of intelligent switching system applied in the field of optical transmission, which can automatically overpass the broken-down network nodes. It can automatically identify the status of the power supply of the network nodes and the optical signal output. When the network node is under the condition of breaking down, it can switch to bypass link to avoid the cut down of SDH network, which can make sure the whole network in a complete running status.
1:1 Protection Illustration
1+1 Protection Mode
Functional Features
Technical Parameter
| Parameters |
Specification
|
||
|---|---|---|---|
|
Mode
|
1+1
|
1:1
|
|
|
Adjustment wavelength
|
1310 & 1550nm
|
||
|
Insertion loss
|
≤4.5dB
|
≤1.5dB
|
|
|
Return loss
|
≥ 45dB
|
||
|
Crosstalk
|
≥55dB
|
||
|
Switching time
|
<20ms
|
<40ms
|
|
|
Optical power monitoring scope
|
-50dBm~ +20dBm
|
||
|
Input/Output optical interface
|
SC/APC、SC/PC、FC/APC、FC/PC
|
||
|
Network management jack
|
RJ45、RS232
|
||
|
Network management mode
|
CLI 、WEB、SNMP
|
||
|
Environmental requirements
|
Operating Temperature
|
-10℃ ~ 60℃
|
|
|
Storage Temperature
|
-20℃ ~ 70℃
|
||
|
Humidity
|
5% ~ 95%
|
||
|
Power
|
220V/AC，50Hz；-48V/DC
|
||
|
Dimension
|
1U
|
44 mm (H)×442 mm (W)×220 mm (L)
|
|
|
2U
|
88 mm (H)×442 mm (W)×220 mm (L)
|
||
|
5U
|
220 mm (H)×442 mm (W)×220 mm (L)
|
||
|
Slot
|
1U
|
2 slots / 4 slots
|
|
|
2U
|
8 slots
|
||
|
5U
|
DC 18 slots
|
||
|
Power consumption
|
1U
|
60W
|
|
|
2U
|
120W
|
||
|
5U
|
300W
|
||
