Ceramic sleeves are mostly used in optical Adapter to align two inserted Ceramic Ferrules together.

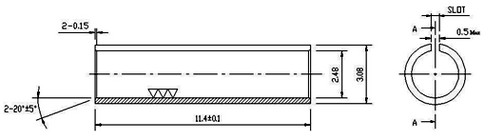

Ceramic SC sleeve
Pull out force 2-6N
Insertion loss< 0.2dB
Durability >1000times
Ra 0.1
Operating temperature -40℃ to +85℃
|
SC sleeve Parameters
|
||||||
|
Type
|
Material
|
Length
|
Outer Diameter
|
Slit Width
|
Pull Out Force
|
Insertion Loss
|
| SC | Zirconia | 11.4±0.1mm |
φ 3.2±0.02mm
|
0.5±0.1mm | 2.0N—4.0N | ＜ 0.2dB |
| SC | Zirconia | 11.4±0.1mm |
φ 3.2±0.02mm
|
0.5±0.1mm | 3.0N—5.0N | ＜ 0.2dB |
| SC | Zirconia | 11.4±0.1mm |
φ 3.2±0.02mm
|
0.5±0.1mm | 3.0N—6.0N | ＜ 0.2dB |

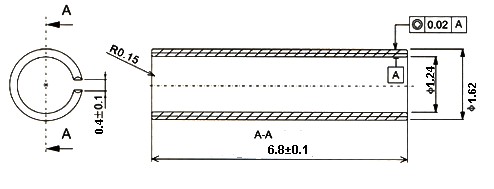

LC sleeve and MU sleeve
Pull out force 1-3N
Insertion loss< 0.2dB
Durability >1000 times
Ra 0.1
Operating temperature -40℃to+85℃
High environmental stability
|
Table Parameter
|
|||||||
|
Type
|
Material
|
Length
|
Outer Diamcter
|
Slit Width
|
Pull Out Force
|
Pull Out Force
|
Insertion Loss
|
|
LC
|
Zirconia
|
6.8±0.1mm
|
φ 1.62±0.01mm
|
0.4±0.1mm
|
1.0N—3.0N
|
1.0N—3.0N
|
< 0.2dB
|
|
MU
|
Zirconia
|
6.8±0.1mm
|
φ 1.62±0.01mm
|
0.4±0.1mm
|
1.0N—2.0N
|
1.0N—2.0N
|
< 0.2dB
|

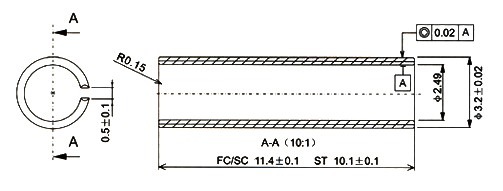

FC sleeve and ST sleeve
Pull out force 2-6N
Insertion loss＜ 0.2dB
|
Table Parameter
|
||||||
|
Type
|
Material
|
Length
|
Outer Diamcter
|
Slit Width
|
Pull Out Force
|
Insertion Loss
|
| FC | Zirconia | 11.4±0.1mm |
φ 3.2±0.02mm
|
0.5±0.1mm | 2.0N—4.0N | < 0.2dB |
| FC | Zirconia | 11.4±0.1mm |
φ 3.2±0.02mm
|
0.5±0.1mm | 3.0N—6.0N | < 0.2dB |
| ST | Zirconia | 10.1±0.1mm |
φ 3.2±0.02mm
|
0.5±0.1mm | 2.0N—5.0N | < 0.2dB |
