Description:
Hybrid adapters offer a solution for hybrid applications where the two different kinds of optical connectors or cable assemblies need to be linked with each other.
SC to ST hybrid adapters are with plastic housing, flange type,zirconia sleeve for single mode and broze sleeve for multimode.Blue for single mode PC and beige for multimode PC.
FC to SC hybrid adapters are also flange type wit plastic housing,Blue for single mode PC and beige for multimode PC.
SC to FC hybrid adapter are available with plastic housing and metal housing.plastic body adapter are flange type and metal adapter are square type.

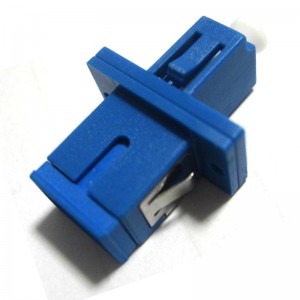

SC to LC hybrid adapter are plastic housing flange type.
FC to LC hybrid adapter
Performance Specifications
| Insertion loss(dB) | ≤ 0.20 | ||
| Duplication (dB) | ≤ 0.10 | ||
| Interchangeability (dB) | ≤ 0.20 | ||
| Sleeve material | zirconia sleeve, broze sleeve | ||
| Operating temperature (℃) | -25 ~ +70 | -40 ~ +80 | -25 ~ +70 |
| Storage temperature (℃) | -40 ~ +85 | ||
