Description
|
Features
|
Applications
|
|
|
Performance Specifications
| Parameters | Values |
| Pump Laser Center Wavelength(nm) | 915 or 975 |
| Operating Wavelength Range(nm) | ± 15 |
| Typ. Pump Insertion Loss(dB) | 0.45 |
| Max. Pump Insertion Loss(-5~70℃) (dB) | 0.65 |
| Operating Signal Wavelength Range(nm) | 1020~1120 |
| Min. Backward Signal Attenuation(dB) | 25 |
| Max. Optical Power (CW) | 100~200 or Specify |
| Min. Return Loss(dB) | 45 |
| Fiber Type | 200/220 Multimode Fiber or Specify |
| Operation Temperature(℃) | -5 ~ +65 |
| Storage Temperature Range(℃) | -40 ~ +85 |
* Above specification are for device without connector, and may change without notice.

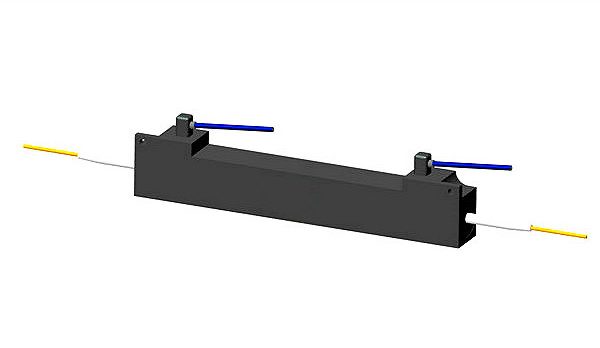

Package Dimension
