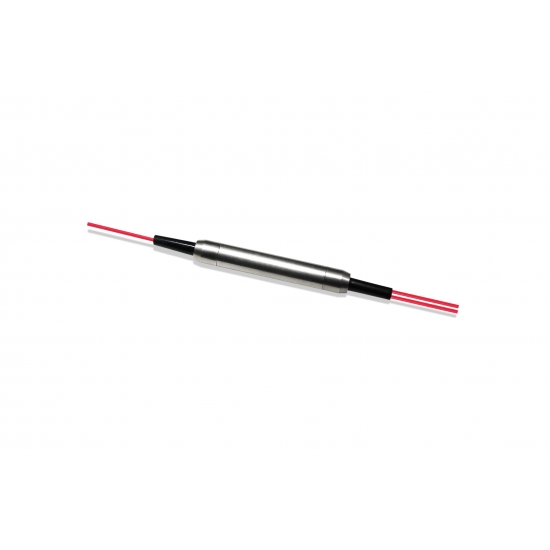

Polarization Beam Combiner/Splitter 1064nm

Availability: In Stock

Port

Fiber Diameter *

Fiber Length *

Connector *

Tag:

Description

Features
Applications

  • High isolation
  • Low insertion loss
  • Excellent stability and reliability
  • High power handling
  • Fiber Laser
  • Fiber Sensor
  • EDFA & Raman Amplifier

Performance Specifications

Parameter Value
Operating wavelength(nm) 1064
Operating bandwidth(nm) ±20
Typical insertion loss(dB) ≤0.8
Return loss(dB) ≥50
Typical Extinction Ratio(dB) ≥22(for PBS)
Handling power(mW) <300
Tensile Load(N) <5
Fiber Type PM 980 (Input) HI1060 or PM 980 (Output)
Operating temperature(℃) -5 ~ +70
Storing temperature(℃) -40 ~ +85

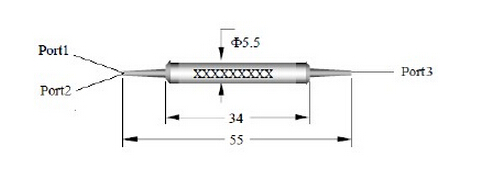

Package dimension(mm) Ø5.5 x 34 or customer specified


1. Above specifications are for device without connector.

2. For devices with connectors, IL will be 0.5dB higher, RL will be 5dB lower and ER will be 2dB lower.

3. The PM fiber and the connector key are aligned to the slow axis and fast axis is blocked.
