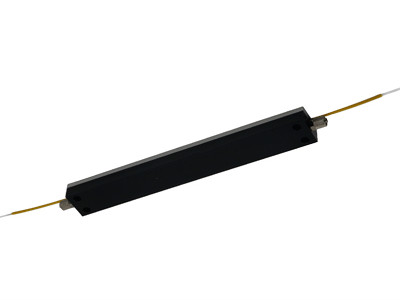

Description
|
Features
|
Applications
|
|
|
Performance Specifications
| Parameters | Values |
| Center Wavelength(nm) | 1080 |
| Operating Wavelength-Pumps (nm) | 800~1200 |
| Cladding attenuation(min)(dB) | 20 |
| Max. Insertion Loss (at 25℃) (dB) | 0.30 |
| Min. Polarization Extinction Ratio (dB) | 15(For PM Fiber) |
| Cladding Power Handling(W) | 20, 50, 100, 200 |
| Fiber Type In/Out | 20/250,25/250,20/400 DCF or Specify |
| Dimension(mm) | 200×26.5×14.5 |
| Water Pipe Type(mm) | 4-6 |
| Pigtail Length(m) | 1.0 or other |
| Operation Temperature(℃) | 0 ~ +50 |
| Storage Temperature Range(℃) | -20 ~ +75 |
* Above specification are for device without connector, and may change without notice.
General Configuration for CPS:
| Working Wavelength(nm) | Input/ouput Fiber | Signal IL | Min.Stripping Efficiency | Max.Power Handling |
| 1020~1080 | 6/125 DC | ≤0.3dB | 20dB | 50W |
| 1530~1570 | 8/125 DC | ≤0.3dB | 20dB | 50W |
| 1020~1080 | 10/125 DC | ≤0.3dB | 20dB | 50W |
| 1020~1080 | 12/125 DC | ≤0.3dB | 20dB | 50W |
| 1020~1080 | 15/125 DC | ≤0.3dB | 20dB | 50W |
| 1020~1080 | 20/125 DC | ≤0.3dB | 20dB | 10W |
| 1020~1080 | 20/200 DC | ≤0.3dB | 20dB | 50W |
| 1020~1080 | 25/250 DC | ≤0.3dB | 20dB | 200W |
| 1530~1570 | 25/300 DC | ≤0.3dB | 17dB | 50W |
| 1020~1080 | 30/250 DC | ≤0.3dB | 20dB | 300W |
| 1020~1080 | 20/400 DC | ≤0.3dB | 17dB | 500W |
| 1020~1080 | PM6/125 DC | ≤0.3dB/ER>18dB | 20dB | 50W |
| 1020~1080 | PM10/125 DC | ≤0.3dB/ER>18dB | 20dB | 50W |
| 1020~1080 | PM15/125 DC | ≤0.3dB/ER>18dB | 20dB | 50W |
| 1020~1080 | PM20/125 DC | ≤0.3dB/ER>18dB | 20dB | 50W |
| 1020~1080 | PM20/200 DC | ≤0.3dB/ER>18dB | 20dB | 100W |
| 1020~1080 | PM25/250 DC | ≤0.3dB/ER>18dB | 20dB | 300W |
| 1020~1080 | PM30/250 DC | ≤0.3dB/ER>18dB | 20dB | 300W |
| 1020~1080 | PM20/400 DC | ≤0.3dB/ER>18dB | 17dB | 500W |
Remark:
1.Other configuration can be customized.We can build CPS on every double clad fiber,
2.For handling power≥100W and some samll core fiber CPS, will need water cooling.
3.All CPS default with bare fiber,0.8m length of pigtail, please contact us for special request.
Package Information(Air Cooling)
| Package Type | T1 | T2 | T3 | T4 | T5 |
| Dimensions (mm) | Ф3×54 | 65×12×7.5 | 70×12×8 | 65×12×7.5 | 65×12×7.5 |
| Positioning hole(mm) | / | 7.0×54 | 7.0×54 | 8.4×54 | 12×54 |
