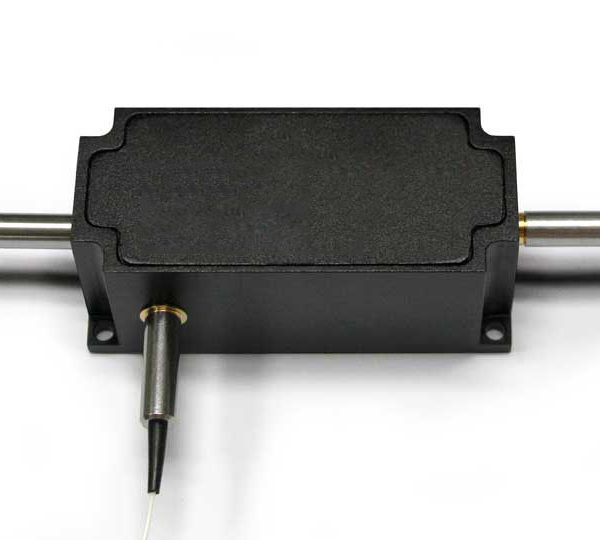

1064nm High Power Polarization Maintaining Circulator

Availability: In Stock

Handling Power *

Connector Type *

Fiber Diameter *

Fiber Length *

Working Axis *

Power Type *

Tag:

Description

Features
Applications
  • High Isolation
  • Low Insertion loss
  • High Extinction Ratio
  • High Stability and Reliability
  • Cost Effective
  • Fiber optic Amplifiers
  • Pump Laser Source
  • Fiber optic Sensor
  • Test and Measurement
  • Instrumentation



Performance Specifications

Parameter

Specification

Operation Wavelength (nm) 1064
Typ. Peak Isolation (dB) 25
Min. Isolation, λc, 23 ℃(dB) 22
Typ. Insertion Loss, 23 ℃ (dB) 1.3
Max. Insertion Loss, 23 (dB) 1.5
Min. Extinction Ratio 20
Cross Talk (dB) 45 (Typ. 50)
Return Loss (dB) > 45
Power Handling (W) 10
Max. Peak Power for ns Pulse(KW) 10
Max. Tensile Load(N) 5
Operating Temperature (°C) 0 ~ +60
Storage Temperature (°C) -40 ~ +85
Fiber Type PM980 fiber

*Specifications may change without notice.
