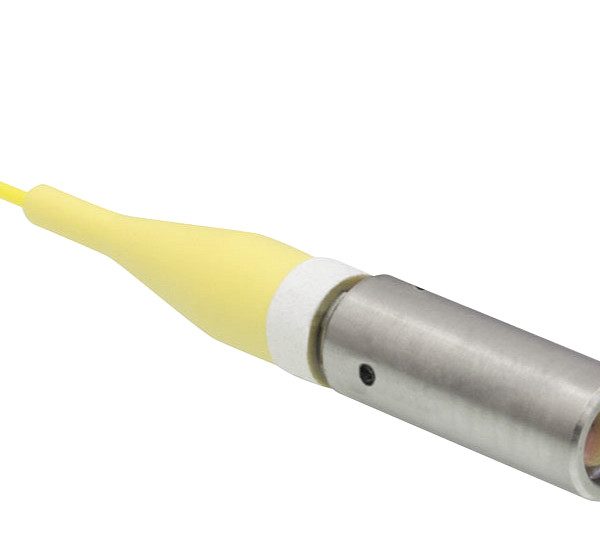

1064nm Large Beam Fiber Collimator

Availability: In Stock

Optical Power *

Beam Diameter *

Far Filed Divergence *

Fiber Core Type *

Fiber Jacket on Input & Length *

Connector Type *

Bare Fiber Length *

Tag:

Description

Features
Applications
  • High power handling
  • Low Insertion loss
  • Cost Effective
  • Fiber lasers



Performance Specifications

Parameters Values
Central Wavelength(nm) 1064
Operating Wavelength Range(nm) ±30
Beam Diameter(mm) 5±1
Working Distance(mm) 1000 or Specify
Typ. Insertion Loss(at 1000mm) (dB) 0.40
Max. Insertion Loss (at 1000mm) (dB) 0.60
Max. Polarization Dependent Loss (dB) 0.10
Max.Far Filed Divergence(1064nm)(mrad) 0.5
Min. Return Loss(dB) 50
Max. Optical Power (CW)(W) 5, 10, 20
Fiber Type 10/125 DS fiber or Specify
Tensile Load(N) 5
Operation Temperature(℃) 0 ~ +50
Storage Temperature Range(℃) -20 ~ +75

* Above specification are for device without connector, and may change without notice.


Package Dimension
