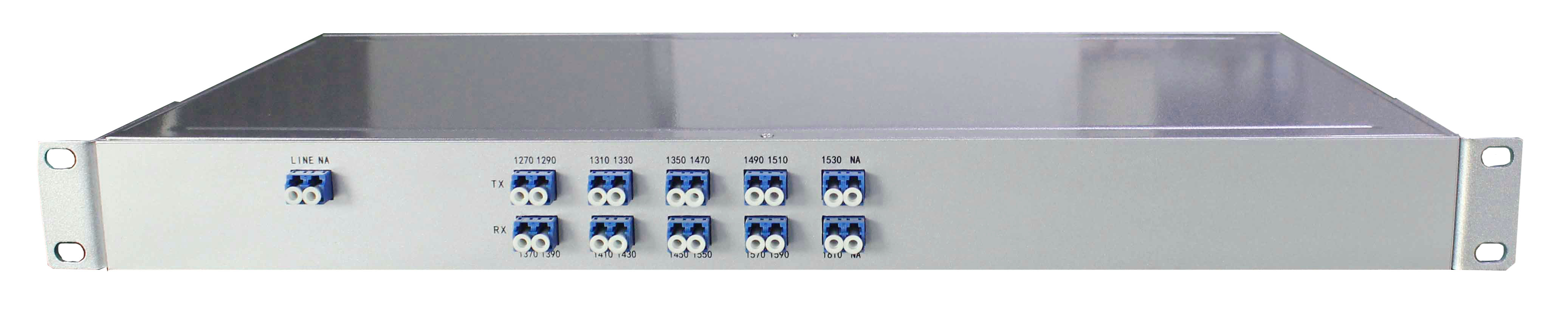

1U Rack 2*9CH CWDM (TX :1270,1290,1310,1330,1350,1470,1490,1510,1530/RX: 1370,1390,1410,1430,1450,1550,1570,1590,1610) , Passive CWDM Single Fiber Bi-direction 9 CWDM channels 18 wavelength Mux&Demux module(RCK Package), LC connector

Regular Price: $214.80

Availability: In Stock
Buy it now with regular price.

Description

Features

  • Low Insertion Loss
  • High Isolation
  • Low PDL
  • Compact Design
  • Good channel-to-channel uniformity
  • Wide Operating Wavelength: 1270nm to 1620nm
  • Wide Operating Temperature: -40 to 85°C

Applications

  • CWDM System
  • PON Networks
  • CATV links

Specification

Parameters
2*9CH
Center wavelength(nm)
ITU, ITU+1
Channel passband(nm)
ITU±6.5
Operation wavelength(nm)
1270-1610nm
Channel separation(nm)
20
Fiber type
SMF-28e or customer specified
IL (dB) (P/A Grade)
<3
Isolation (dB)
Adjacent channel
30
Non adjacent channel
50
Polarization dependent loss(dB)
0.2
Polarization mode dispersion(ps)
0.1
Return loss(dB)
45
Directivity(dB)
50
Maximum Optical power(mw)
500
Operating temperature ()℃
-40～85
Storage temperature()℃
-40～85
BOX Package (mm)
90*20*9.5
100*80*10
120*80*18
140*114*18
LGX Package
1U, 2U
19’’ 1U rack
1U

Notes:
1. Specified without connectors.
2. Add an additional 0.2dB loss per connector.

Product Specification

Weight 6 g
