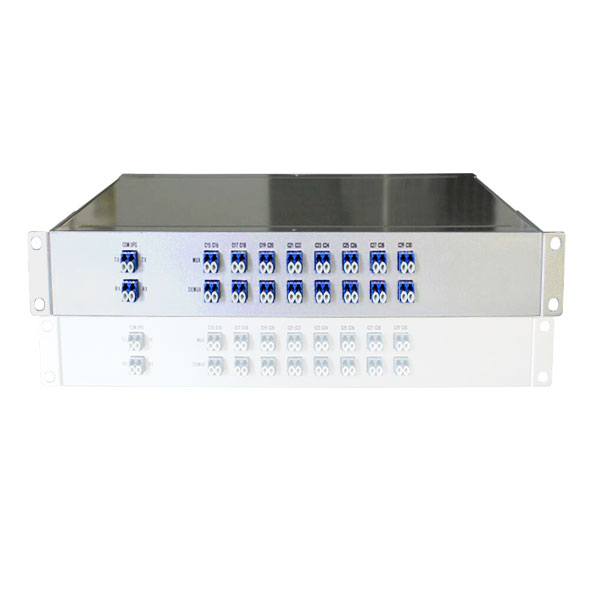

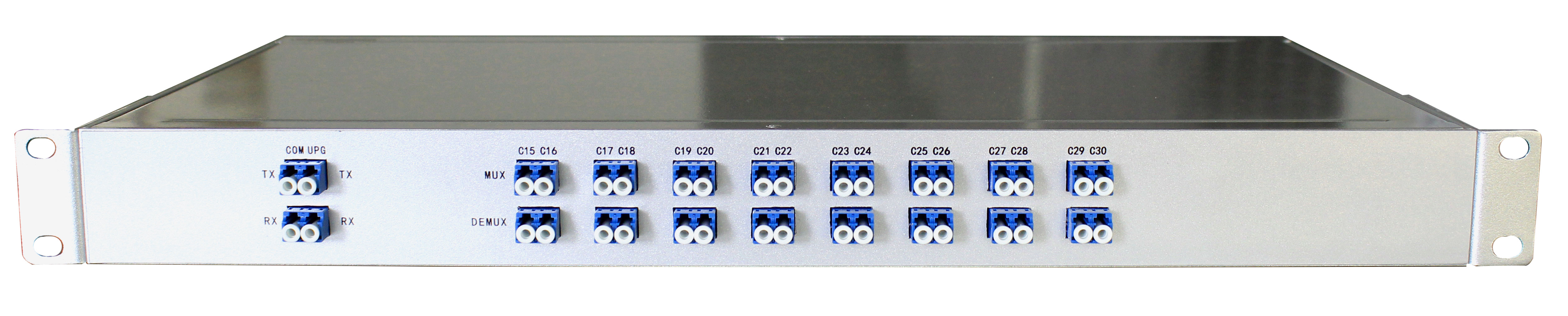

Description
Features
- Low Insertion Loss
- High Isolation
- Low PDL
- Compact Design
- Good channel-to-channel uniformity
- Wide Operating Wavelength
- Wide Operating Temperature: -40 to 85°C
Applications
- DWDM System
- PON Networks
- CATV links
- Fiber optical amplifier
- Wavelength routing
Specification
|
A
|
OP
|
Optical Performance |
unit
|
Specification | ||
|---|---|---|---|---|---|---|
|
1
|
CH
|
Channels |
16CH
|
|||
|
2
|
OW
|
Operation Wavelength |
nm
|
C15-C30nm
|
||
|
3
|
CW
|
Center Wavelength |
nm
|
ITU DWDM Band
|
||
|
4
|
CP
|
Channel Passband |
nm
|
+/-0.11
|
||
|
5
|
IL
|
Drop/add channel Insert Loss |
max
|
dB
|
5
|
|
|
6
|
IS
|
Isolation | Adjacent Channel |
min
|
dB
|
30
|
| Non-adjacent Channel |
min
|
dB
|
45
|
|||
|
7
|
PDL
|
Polarization Dependent Loss |
min
|
dB
|
0.10
|
|
|
8
|
UF
|
Ripple in Passband |
max
|
dB
|
0.30
|
|
|
9
|
RL
|
Return Loss |
min
|
dB
|
50
|
|
|
10
|
DIR
|
Directivity |
min
|
dB
|
55
|
|
|
11
|
PMD
|
Polarization Mode Dispersion |
max
|
ps
|
0.2
|
|
|
12
|
PH
|
Power Handling |
max
|
mW
|
500
|
|
|
13
|
FT
|
Fiber Type |
SMF-28e
|
|||
|
14
|
OT
|
Operating Temperature |
oC
|
-20~70
|
||
|
15
|
ST
|
Storage Temperature |
oC
|
-40~85
|
||
|
16
|
TS
|
Tensile Strength |
min
|
N
|
5
|
|
|
B
|
Others Parameters | |||||
|
1
|
Package Dimension |
mm
|
1U RACK
|
|||
|
2
|
Pigtail Type |
mm
|
||||
|
3
|
Pigtail Length |
M
|
||||
|
4
|
Connector Type |
LC/PC
|
||||
Note:
1. IL include connector loss.
2. All components compliant with RoHs and Telcordia GR-1209/Telcordia GR-1221
