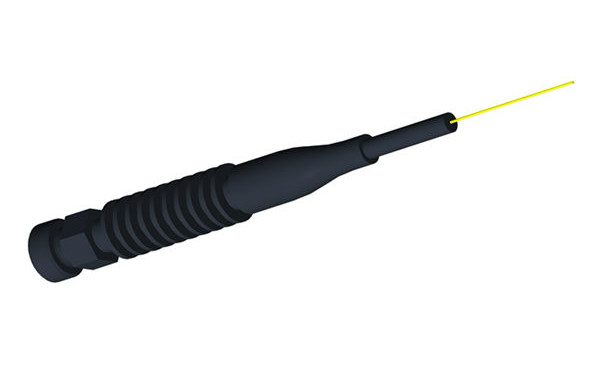

1064nm Fiber End Caps

Availability: In Stock

Optical Power *

Connector Type *

Fiber Jacket Type *

Jacket Length *

Bare Fiber Length *

Tag:

Description

Features
Applications
  • High power handling
  • Low Insertion loss
  • Cost Effective
  • Fiber lasers



Performance Specifications

Parameters Values
Center Wavelength(nm)  1064nm
Operating Wavelength Range(nm) ± 30
Max. Optical Power (W) 500,  1000,  5000
Max. Optical Power(Cladding) (W) 20
Fiber end cap angle(deg) 0~10
Fiber Type 20/400,NA0.06/0.46
Min. Return Loss(dB) 45
Jacket Fiber Length(m) 2.5
Bare Fiber Length(m) 1.8
Operation Temperature(℃) -5 ~ +65
Storage Temperature Range(℃) -40 ~ +85

* Above specification are for device without connector, and may change without notice.

Package Dimension
