Description
| Features | Applications |  |
|
|
Performance Specifications
| Parameter | Specification | ||
| Center Wavelength(nm) | 1064 | ||
| Pass bandwidth @0.5dB down(nm) | >2 | >5 | >8 |
| Stop bandwidth@25dB down(nm) | <20 | <22 | <25 |
| Insertion Loss@1064±1nm(dB) | 1.2 | – | – |
| Insertion Loss@1064±2.5nm(dB) | – | 0.8 | – |
| Insertion Loss@1064±4nm(dB) | – | – | 0.8 |
| Isolation@1000~1058nm&1070~1100(dB) | 25 | – | – |
| Isolation@1000~1055nm&1075~1100(dB) | – | 28 | – |
| Isolation@1000~1050nm&1080~1100(dB) | – | – | 32 |
| Return Loss(dB) | >50 | ||
| Extinction Ratio (dB) | >20 | ||
| PDL(dB) | <0.1 | ||
| Operating Temperature(℃) | -5 – 75 | ||
| Storage Temperature(℃) | -40 – 85 | ||
| Fiber Type | PM980 | ||
| Power Handling (Max)( (mW) | 300 | ||
| Fiber Pigtail Length (m) | 1meter | ||

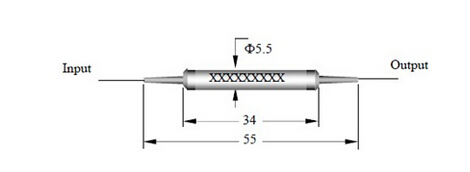

| Dimensions (mm) | Ф5.5×L35 | ||
1. The above specification is without connector
2. For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower.
3. Other specifications can be made on customer request.
