Description
|
Features
|
Applications
|
|
|
Performance Specifications
| Parameter | Specification |
| Operation Wavelength (nm) | 970～990 |
| Typical Peak Isolation(dB) | 25 |
| Minimum Isolation(dB) | 20 |
| Typical Insertion Loss (dB) | 1.3 |
| Minimum Insertion Loss (dB) | 1.8 |
| Return Loss (dB) | 50 |
| Cross Talk (dB) | Min.45(Typ.50) |
| Wavelength Dependent Loss (dB) | 0.2 |
| PDL(dB) | 0.2 |
| Operating Temperature (°C) | 0～+65 |
| Storage Temperature (°C) | -40～85 |
| Fiber Type | PM 980 or HI 1060 fiber |
| Power Handing(mw) | 500 |
| Dimensions(mm) | 62.6*28*27 |
**Specifications may change without notice.

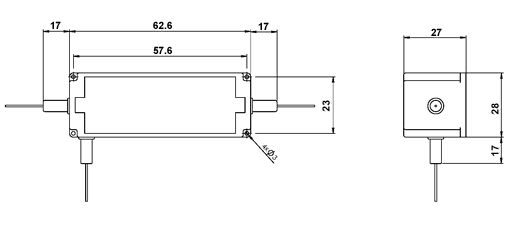

Package Dimension
