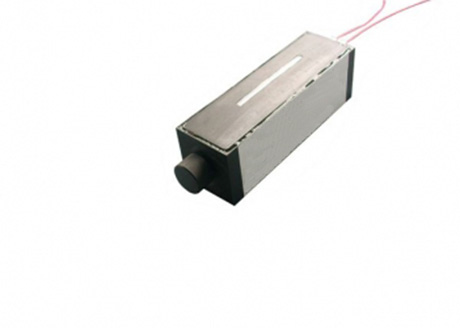

Description
Features
- Space Efficient
- Highest delay to length ratio Long delay: more than 1500ps
- Free space model available Rugged design
Applications
- Passive time division multiplexing
- TDM bit alignment
- Fiber interferometers
Parameters
| Parameter | Value |
| Wavelength Range | C-Band or L-Band OR Other Wavelength |
| Optical Delay Range | 0~100 ps continuous for 100ps model |
| 0~330 ps continuous for 330ps model | |
| 0~600 ps continuous for 600ps model | |
| 0~1500ps continuous for 1500ps model | |
| Readout Scale Resolution | 0.1ps |
| Insertion Loss | typ.0.8dB,max 1.2dB |
| Insertion Loss Variation | ±0.25dB over entire range for 100ps model |
| ±0.35 dB over entire range for 330ps model | |
| ±0.55 dB over entire range for 600ps model | |
| ±1.5 dB over entire range for 1500ps model | |
| Return Loss | > 55 dB |
| Extinction Ratio | >18 dB |
| Operating power (optical) | max 500mW |
| Optical Power Handling | 0~50℃ |
| Operating Temperature | -40~65℃ |
| Fiber Type | Conning SMF-28,or Fujikura PM Panda fiber |
| Size (L x W x H) | 69.5 x 35.5X32mm for 100ps model |
| 110 x 35.5X32mm for 330ps model | |
| 152x 35.5X32mm for 600ps model | |
| 282 x 35.5X32mm for 1500ps model |
Ordering Information
| COF | Delay | Fiber Type | Fiber Length | Connector |
| 10=100ps
33=330ps 60=600ps 150=1500ps XX=others |
S9=SMF 900um
M5=MMF 50/125/900um M6=MMF 62.5/125/900um PM= PM Panda XX=others |
1=1.0m
2=2.0m |
NE=None FA=FC/APC FC=FC/PC SA=SC/APC SC=SC/PC
ST=ST/PC LA=LC/APC LC=LC/PC XX=others |
