Description

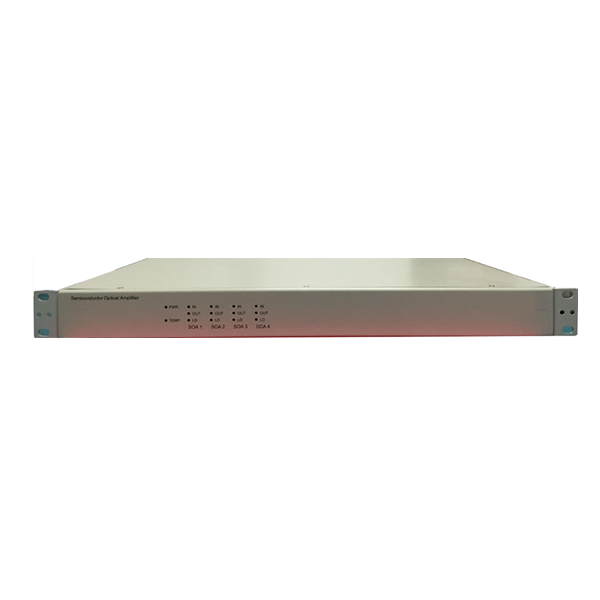

O-band Rack-mounted SOA amplifier can amplify optical signal with wavelength 1270~1330nm. The product has two operation modes: ACC and APC. The product features as stable output power, low NF and low PDG. This series SOA can support optical amplification with date rate under 160Gb/s.
Characteristics
- Support O-band, 1260~1340nm or 1480~1510nm
- Max output power 13dBm
- Support ACC and AGC

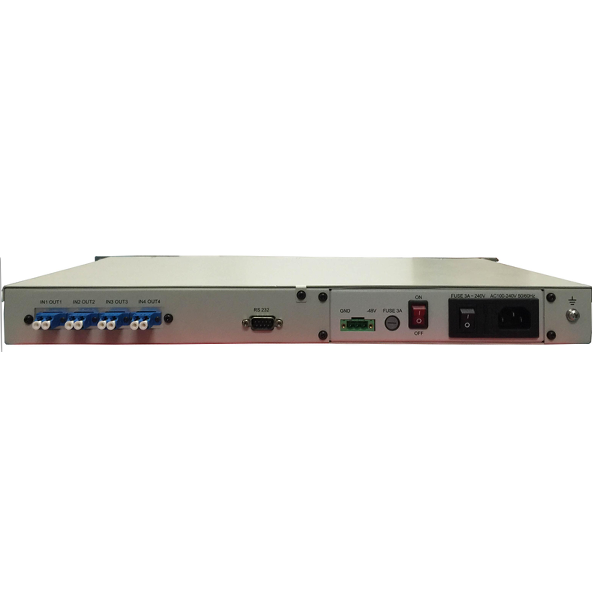

- RS232 or SNMP management
- 19inch 1U mounted rack
- 220VAC or -49VDC power suply
- RoHS
Applications
- 10G/40G/100G network
- Network monitor
Parameter
| Parameters |
Condition
|
Min
|
Typ
|
Max
|
Unit
|
|---|---|---|---|---|---|
|
Wavelength Range
|
40GE
|
1260
|
1340
|
nm
|
|
|
Wavelength Range
|
100GE
|
1290
|
1320
|
nm
|
|
|
Total Input power
|
-20
|
-10
|
dBm
|
||
|
Saturation Output Power
|
10
|
dBm
|
|||
|
Gain
|
15
|
dB
|
|||
|
Gain ripple
|
2
|
dB
|
|||
|
Noise Figure
|
7.5
|
8.0
|
dB
|
||
|
PDG
|
2
|
dB
|
|||
|
Operating Temperature
|
-5
|
60
|
℃
|
||
|
Operating Humidity
|
5
|
95
|
%
|
||
|
Storage Temperature
|
-40
|
85
|
℃
|
||
|
Power voltage
|
220VAC,-48VDC
|
V
|
|||
|
Power Consumption
|
1 SOA
|
10
|
W
|
||
|
Dimension
|
1U 19’’
|
482.6x245x43.6
|
mm
|
||
|
Connector
|
Can be Custermerized
|
||||
Order Information
|
Part No.
|
Type
|
|---|---|
|
RD-SOA-A1-1310-10/GXX
|
SOA 1 in 1 out
|
|
RD-SOA-A2-1310-10/GXX
|
SOA 2 in 2 out
|
|
RD-SOA-A4-1310-10/GXX
|
SOA 4 in 4 out
|
