Description

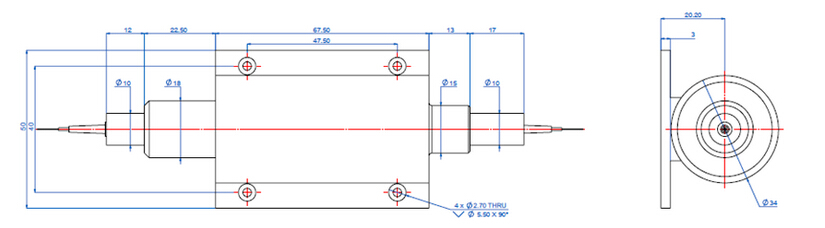

Performance Specifications*Specifications may change without notice.Package Dimension
|
Features
|
Applications
|
|
|
| Parameters | Values |
| Central Wavelength(nm) | 1030 |
| Operating Wavelength Range(nm) | ±15 |
| Typ. Peak Isolation(dB) | 25 |
| Min. Isolation in Band (at 25℃) (dB) | 20 |
| Typ. Insertion Loss (dB) | 1.2 |
| Max. Insertion Loss (at 25℃) (dB) | 1.5 |
| Max. Polarization Dependent Loss(dB) | 0.15 |
| Min. Return Loss(dB) | 45 |
| Max. Optical Power (Continuous Wave)(mW) | 500 |
| Fiber Type | HI1060 |
| Tensile Load(N) | 5 |
| Operation Temperature(℃) | 0 ~ +50 |
| Storage Temperature Range(℃) | -20 ~ +75 |
