Description
|
Features
|
Applications
|
 |
|
|
Performance Specifications
| Parameter | Single Stage | Dual Stage | ||
| Grade | P | A | P | A |
| Operating wavelength (nm) | 1310 ± 15, 1480 ± 15 or 1550 ± 15 | |||
| Typ. Insertion Loss(dB) | 0.4 | 0.5 | 0.5 | 0.6 |
| Insertion loss (dB) | ≤0.5 | ≤0.65 | ≤0.65 | ≤0.8 |
| Typ. Peak isolation (dB) | 42 | 40 | 58 | 55 |
| Isolation at (dB) | ≥32 | ≥30 | ≥50 | ≥48 |
| Extinction ratio Type B (dB) | ≥22 | ≥20 | ≥22 | ≥20 |
| Extinction ratio Type F (dB) | ≥23 | ≥20 | ≥23 | ≥20 |
| Return loss (input/output) | ≥55/50 | ≥55/50 | ≥55/50 | ≥55/50 |
| Fiber Type | PM 1550 or PM 1310 | |||
| Operating temperature (℃) | -5℃ ~ + 70℃ | |||
| Storage temperature (℃) | -40℃ ~ + 85 ℃ | |||
| Max. Optical Power (mw) | ≤500 | |||

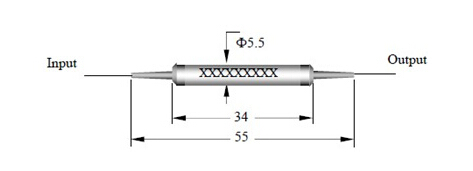

| Dimensions (mm) | Ф5.5× L34 | |||
| “B” for Both axis working, “F” for Fast axis blocking | ||||
1. Above specifications are for device without connector.
2. For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower and ER will be 2dB lower.
3. For device with connector, key aligned to slow axis.
