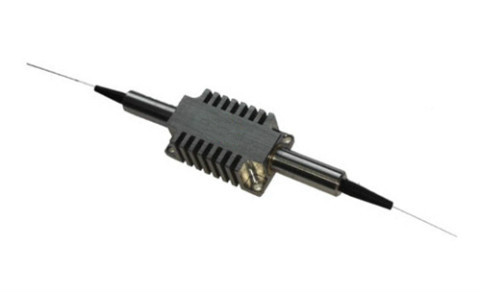

1064nm High Power Polarization Independent Isolator-2W

Availability: In Stock

Optical Power *

Power Type *

Fiber Type *

Fiber Jacket on Input & Output *

Fiber Length *

Connector Type on in &out *

Tag:

Description

Features
Applications
  • Low Insertion Loss
  • Compact Package
  • High Power Handling
  • Low Cost
  • High Reliability
  • Excellent Temperature Stability
  • Fiber Lasers
  • Fiber Amplifier
  • Instrumentation
  • Test and Measurement
  • Fiber Amplifier Lab Research


Performance Specifications

Parameters Specification
Central Wavelength(nm) 1064
Operating Wavelength Range(nm) ±5
Typ. Peak Isolation(dB) 35
Min.Isolation at CWL (at 25℃)(dB) 28
Typ. Insertion Loss(at 25℃)(dB) 1.7
Max. Insertion Loss(at 25℃,100mW)(dB) 2.0
Insertion Loss at CWL (at 25℃,1W)(dB) 2.5
Max. Insertion Loss (at 0~50℃,2W)(dB) 3.0
Max. Polarization Dependent Loss(at 25℃)(dB) 0.2
Min. Return Loss(dB) 50
Fiber Length(m) 1
Fiber Type HI1060,10/125 SCF,20/125 SCF
Max. Optical Power (CW)(W) 2
Max. Optical Peak Power(kW) 1
Max.Tensile Load(N) 5
Operation Temperature(℃) 0 ~ +50
Storage Temperature Range(℃) -40 ~ +85

* Above specification are for device without connector, and may change without notice.
