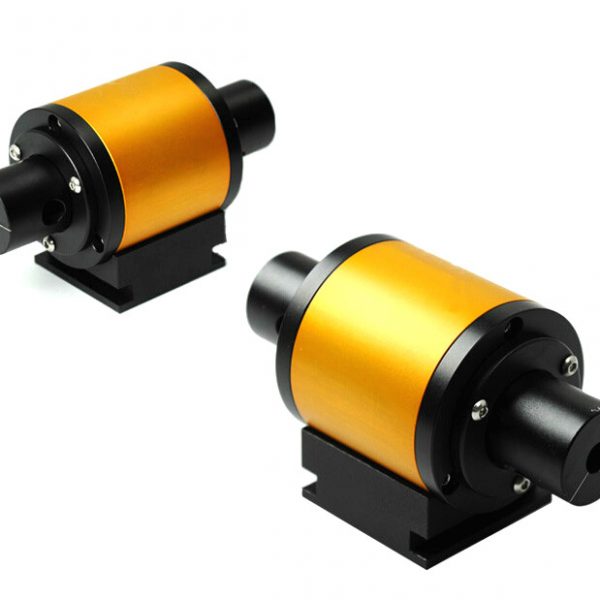

High Power Faraday Rotator and Isolator

Availability: In Stock
Tag:

Description

Features
Applications
  • Low Insertion Loss
  • High Power Handling
  • High Isolation
  • Low Cost
  • High Reliability
  • Excellent Temperature Stability
  • Multi-level laser amplifier
  • Optical parametric oscillator
  • Ring laser
  • Erbium-doped fiber amplifier
  • Seed injecting laser
  • Optical modulator


Performance Specifications

Free Space Isolator(1020-1080nm)
Part No Clear Aperture(mm) Trans

@25℃ (%)

 Isolation

@25℃ (dB)

 Rotation Pulse damage

threshold@10ns

 Operation Temperature(℃)
HPFSI-1064-3 2.8 ≥92 ≥30 45±2 5J/cm2 0 ~+50
HPFSI-1064-5 5.0 ≥92 ≥30 45±2 5J/cm2 0 ~+50
HPFSI-1064-6 6.0 ≥92 ≥30 45±2 5J/cm2 0 ~+50
HPFSI-1064-7 6.8 ≥92 ≥30 45±2 5J/cm2 0 ~+50



Faraday Rotator(1020-1080nm)
Part No Clear Aperture(mm) Trans

@25℃ (%)

 ER@25℃ (dB) Rotation Pulse damage

threshold@10ns

 Operation Temperature(℃)
HPFR-1064-3 2.8 ≥98 ≥30 45±2 5J/cm2 0 ~+50
HPFR-1064-5 5.0 ≥98 ≥30 45±2 5J/cm2 0 ~+50
HPFR-1064-6 6.0 ≥98 ≥30 45±2 5J/cm2 0 ~+50
HPFR-1064-7 6.8 ≥98 ≥30 45±2 5J/cm2 0 ~+50

 Note:  a. Other wavelength available.

  1. Customer made larger clear aperture.
