Product Specification

Weight	35 g
Connector Type	MPO-MPO	Fiber Mode	Single mode
Fiber Count	12 Fibers	Insertion Loss	0.7dB/0.35dB
Return Loss	≥20dB	Polish Type	APC-APC
Cable Jacket	LSZH	Jacket OD	3.0mm
Installation Tensile Load	100 N	Long-Term Tensile Load	50 N
Mini Bend Radius	7.5mm	Storage Temperature	-40°C to +85°C
Operating Temperature	-10°C to +70°C

Connector Type	MPO-MPO
Fiber Mode	Single mode
Fiber Count	12 Fibers
Insertion Loss	0.7dB/0.35dB
Return Loss	≥20dB
Polish Type	APC-APC

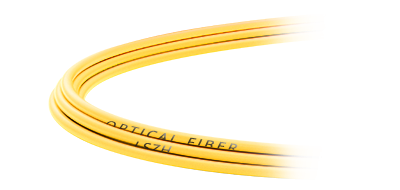

Cable Jacket	LSZH
Jacket OD	3.0mm
Installation Tensile Load	100 N
Long-Term Tensile Load	50 N
Mini Bend Radius	7.5mm
Storage Temperature	-40°C to +85°C
Operating Temperature	-10°C to +70°C

0
0 reviews
5 Stars

4 Stars

3 Stars

2 Stars

1 Stars

All Reviews (0)

There are no reviews yet.

Write a Review

Features

Low Insertion Loss and Back Reflection Loss

Good Enchangeability

Good Durability

High Temperature Stability

Applications

High Density Wiring System

Wiring in Communication Base Station and Distribution Case

Jumper Connection

40G and 100G System, QSFP Module

Optical Fiber Communication System, CATV

LANs and WANs

FTTP

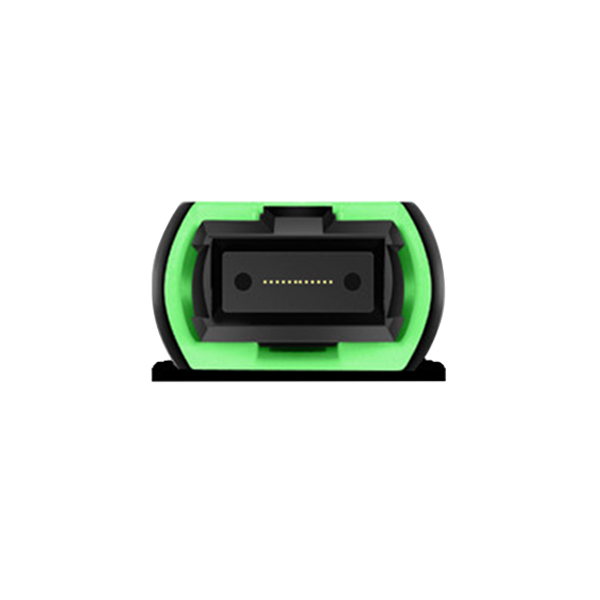

Multi-fiber Push On, Compact and Superior Design

Easy to Connect and Distribute

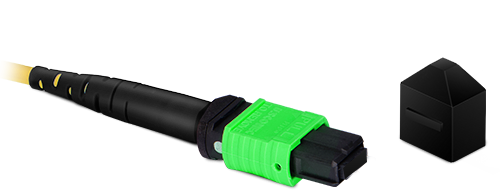

Protective Dust Cap

MPO Trunk Cable Type A:

Type A cable also known as straight cable, is a straight through cable with a key up MPO connector on one end and a key down MPO connector on the opposite end. This makes the fibers at each end of the cable have the same fiber position. For example, the fiber located at position 1 (P1) of the connector on one side will arrive at P1 at the other connector. The fiber sequence of a 12 fiber MPO Type A cable is showed as the following:

MPO Trunk Cable Type B:

Type B cable (reversed cable) uses key up connector on both ends of the cable. This type of array mating results in an inversion, which means the fiber positions are reversed at each end. The fiber at P1 at one end is mated with fiber at P12 at the opposing end. The following picture shows the fiber sequences of a 12 fiber Type B cable.

MPO Trunk Cable Type C:

Type C cable (pairs flipped cable) looks like Type A cable with one key up connector and one key down connector on each side. However, in Type C each adjacent pair of fibers at one end are flipped at the other end. For example, the fiber at position 1 on one end is shifted to position 2 at the other end of the cable. The fiber at position 2 at one end is shifted to position 1 at the opposite end etc. The fiber sequence of Type C cable is demonstrated in the following picture.
