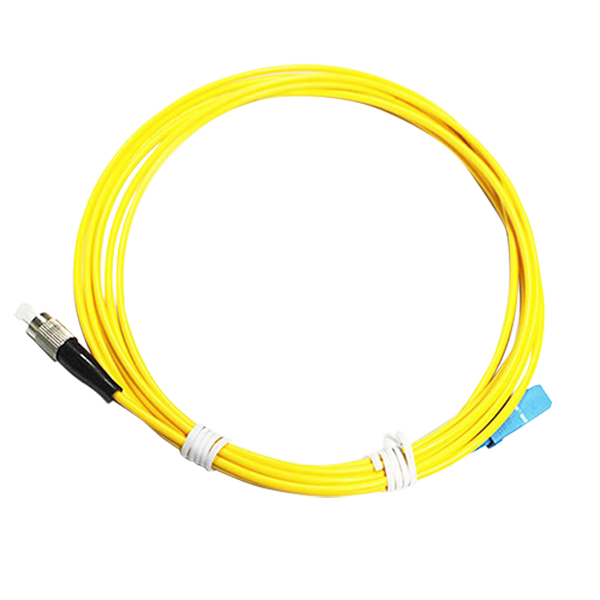

Polarization Maintaining Fiber Patch Cable Single mode PM

Regular Price: $78.30 – $138.80

Clear

Connector *

Description

This price on the website is for 1M length,please feel free to enquiry us for the other length standard

Product Specification

wavelength:

1310, 1550, PM980

 cable OD:

0.9mm, 2.0mm, 3.0mm
length

1M, 2M, 5M, 10M
wavelength:

1310, 1550, PM980
cable OD:

0.9mm, 2.0mm, 3.0mm
length

1M, 2M, 5M, 10M
  • 0

    0 reviews

  • 5 Stars
    4 Stars
    3 Stars
    2 Stars
    1 Stars

There are no reviews yet.

Your email address will not be published. Required fields are marked *

Specification

Parameters

unit

specification

Wavelength

nm

1550

1310

PM 980

Fiber type

---

PM 1550

PM 1310

980/1060

Insertion Loss

dB

≤0.4

≤0.6

Return Loss

UPC Type

dB

≥50

APC Type

dB

≥55

ExtinctionRatio 23℃

PM Connector

P

dB

≥25

≥25

≥23

A

dB

≥25

≥25

PM Component with Connector

dB

Based on the component, 2dB lower

Operating temperature

---

℃

-20 ~ +70

Features

  • Excellent Temperature stability
  • Excellent mechanical endurance
  • Low insertion loss ,high return loss
  • Customer defined specifications
  • Good repeatability and exchangeability
  • Compliant with Telcordia,TIA/EIA and IEC

    • Applications

  • Fiber Laser
  • Optical Transmitters & Transceivers
  • Fiber Amplifiber
  • Optical component test and manufacturing
  • Testing Instrument

    • Picture Samples

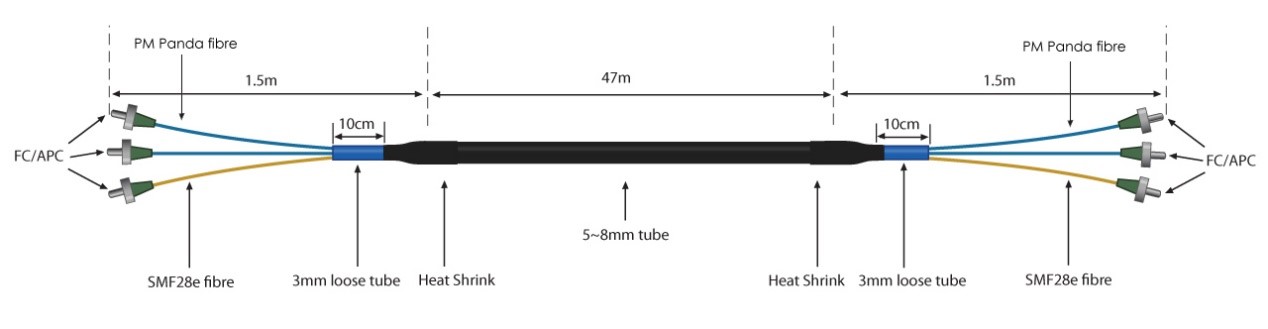

    pm-cable
