Description
|
Features
|
Applications
|
|
|
Performance Specifications
| Parameters | Value | |||
| Product Code | PSC18101001 | PSC18101002 | PSC18101003 | PSC18101004 |
| Signal Operating Wavelengths | 1030-1080nm | 1530-1580nm | 1030-1080nm | 1030-1080nm |
| Pump Operating Wavelengths | 800-1000nm | 800-1000nm | 800-1000nm | 800-1000nm |
| Number of Multimode Inputs | 18 | 18 | 18 | 18 |
| Number of Signal Ports | 1 | 1 | 1 | 1 |
| Number of DCF Ports | 1 | 1 | 1 | 1 |
| Pump Input Fiber | 105/125um,NA0.15 | 105/125um,NA0.15 | 105/125um,NA0.22 | 105/125um,NA0.22 |
| Signal Input Fiber | 6/125 SC | 8/125 SC | 10/125um DC | 10/125um DC |
| Output Fiber | 10/200um DC | 20/200um DC | 25/250um DC | 20/400um DC |
| Maximum Pump Insertion Loss | <0.5dB | <0.5dB | <0.5dB | <0.5dB |
| Maximum Signal Insertion Loss | <0.8dB | <0.8dB | <0.8dB | <0.8dB |
| Power per Multimode Input | 25W | 25W | 25W | 50W |
| Optical Return Loss – Pumps | 45dB | 45dB | 45dB | 45dB |
| Dimensions | T2,T3,T4,T5 | |||
*Specifications may be change without notice.
General Configuration for (18+1)x1 Combiner:
| Type | Pump fiber | Input signal | Output fiber | Max.Signal IL | Pump Effi. | Max.Power Handling |
| (18+1) ×1 | 105/125 0.15 | 6/125 SC or DC | 10/200 DC | 0.8dB | 95% | 25W/leg |
| (18+1) ×1 | 105/125 0.15 | 6/125 SC or DC | 20/200 DC | 0.7dB | 95% | 25W/leg |
| (18+1) ×1 | 105/125 0.15 | 6/125 SC or DC | 25/250 DC | 0.7dB | 95% | 25W/leg |
| (18+1) ×1 | 105/125 0.15 | 6/125 SC or DC | 30/250 DC | 0.7dB | 95% | 25W/leg |
| (18+1) ×1 | 105/125 0.15 | 8/125 SC or DC | 20/200 DC | 0.7dB | 95% | 25W/leg |
| (18+1) ×1 | 105/125 0.22 | 10/125 SC or DC | 25/250 DC | 0.7dB | 95% | 25W/leg |
| (18+1) ×1 | 105/125 0.22 | 12/125 SC or DC | 30/250 DC | 0.7dB | 95% | 25W/leg |
| (18+1) ×1 | 105/125 0.22 | 15/125 SC or DC | 30/250 DC | 0.7dB | 95% | 25W/leg |
| (18+1) ×1 | 105/125 0.22 | 6/125 DC | 20/400 DC | 0.7dB | 96% | 50W/leg |
| (18+1) ×1 | 105/125 0.22 | 8/125 DC | 25/300 DC | 0.7dB | 95% | 25W/leg |
| (18+1) ×1 | 200/220 0.22 | 10/125 DC | 25/300 DC | 0.7dB | 95% | 25W/leg |
| (18+1) ×1 | 220/242 0.22 | 10/125 DC | 20/400 DC | 0.7dB | 96% | 50W/leg |
Remark:
1.Other configuration and higher power handling can be customized.
2.All combiners default with bare fiber,0.8m length of pigtail, please contact us for special request.

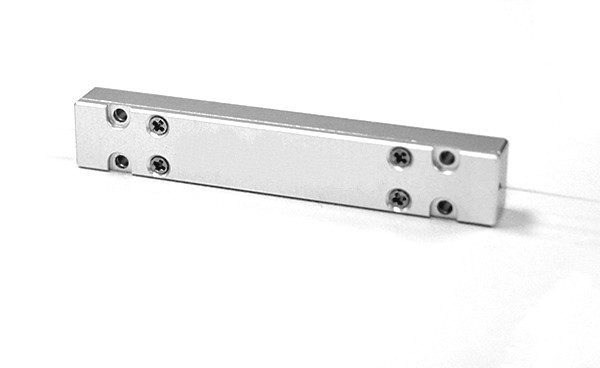

Package Information
| Package Type | T1 | T2 | T3 | T4 | T5 |
| Dimensions (mm) | Ф3×54 | 65×12×7.5 | 70×12×8 | 65×12×7.5 | 65×12×7.5 |
| Positioning hole(mm) | / | 7.0×54 | 7.0×54 | 8.4×54 | 12×54 |
