Description
|
Features
|
Applications
|
 |
|
|
Performance Specifications
| Parameter | In-line Faraday Rotator | |
| Operating Wavelength(nm) | 1064 | |
| Bandwidth (nm) | ±5 | |
| Typ. Insertion Loss(dB)@23℃ | ≤1.1 | |
| Extinction Ratio (dB) | ≥20 | |
| Rotation Angle(degree) | 45±1 | |
| Return Loss (dB) | ≥50/50 | |
| Fiber Type | Option 1 | PM980-PM980 |
| Option 2 | HI1060-PM980 | |
| Option 3 | HI1060-HI1060 | |
| Optical Power (CW) (mW) | ≤300 | |
| Operating temperature(℃) | -5~+70 | |
| Storage temperature(℃) | -40~+85 | |

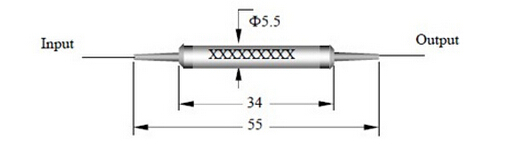

| Dimension (mm) | Φ5.5×L34 | |
1. Above specifications are for device without connector.
2. For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower and ER will be 2dB lower.
3. For device with connector, key aligned to slow axis.
