Description
|
Features
|
Applications
|
 |
|
|
Performance Specifications
| Parameter | Single stage |
| Center Wavelength (nm) | 1064 |
| Operating Wavelength Range(nm) | ±5 |
| Insertion Loss (dB) | ≤2.1 |
| Typical Isolation (dB) | 35 |
| Isolation (dB) | >25 |
| Extinction Ratio(for splitter only) (dB) | >20 |
| Return Loss (dB) | >50 |
| Optical Power (mW) | ≤300 |
| Fiber Type (Port1&2) | SM98-PS-U25A |
| Fiber Type(Port3) | See ordering information |
| Max.Tensile Load (N) | ≤5 |
| Operating Temperature (°C) | -5 ~+70 |
| Storage Temperature (°C) | -40 ~+85 |

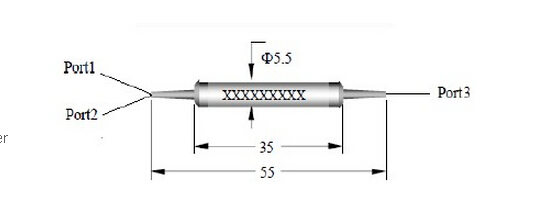

| Package Dimension (mm) | ø5.5 x L35 |
1. Above specifications are for device without connector.
2. For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower and ER will be 2dB lower.
3. The PM fiber and the connector key are aligned to the slow axis and fast axis is blocked.
