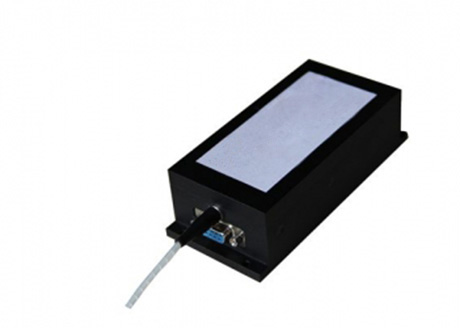

1xN Mechanical Fiber Optic Switch

       1xN optic switch is a kind of function devices which can switch optical path. In optical fiber transmission system, it used for multiple light monitoring, LAN, Light/detector, the protection of Ethernet networks connect and conversion etc. In the fiber test system, it used for fiber and fiber components testing, network testing, wild cable testing, the optical fiber sensing multi-point monitoring system.

Features

• Up to 128 roads
• Low loss and high reliability
• Parallel Interface
• Exclusive patent technology

Applications

• Fiber Circuit
• Atomic Measurement
• Optical fiber network remote

Parameters

Parameters	1×N
Operating Wavelength  nm	532~980（MM）	532~980（SM）	1260~1620（MM）	1260~1620（SM）
Testing Wavelength nm	650/780/850/980	650/780/850/980	1310/1490/1550/1625	1310/1490/1550/1625
Insertion Loss   dB	Typ:0.6  Max:1.0	Typ:0.6  Max:1.0	Typ:0.6  Max:0.9	Typ:0.5  Max:0.8
Return    Loss   dB	SM≥50、MM≥30
Cross Talk     dB	SM≥55、MM≥35
Polarization Dependant LossdB	≤0.05
Wavelength Dependant Loss    dB	≤0.25
Temperature Dependant Loss dB	≤0.25
Repeatability      dB	≤±0.02
Lifetime     times	After  107  switching  time (IL≤0.7 dB)、109(IL≤0.9 dB)、1010 (IL≤1.5dB)
Light Transmission Power   mW	≤500
Switching Time       ms	≤8
Operating Temperature  °C	-20～+70
Storage Temperature °C	-40～+85
Power supply      V	+5 or 12
Module configuration dimensions   mm	1<n<6< span=””> (135×40×32)	6≤N≤12 (135×64×32)	8≤N≤16(184×78×38)	16≤N≤48(184×78×66)
	48≤N≤96 (206×78×66)

Ordering Information

Type	State	Operating wavelength	Port	Grade	Fiber type	Fiber length	In/Out connector type
SMS	1=non-latching 2=latching	15=1550±40nm 13=1310±40nm 35=1310/1550nm	0101=1×1 0104=1×4 0108=1×8 01016=1×16 01032=1×32 01064=1×64 0100=other	1=P grade 2=A grade	1=Bare Fiber 2=900um Jacket	1=1 Meter 2=2 Meter	1=None 2=FC/APC 3=FC/PC 4=SC/APC 5=SC/PC 6=ST 7=LC
